Monochrome Thermal Printer
RG-EC80A
The 80mm thermal receipt printer with RS232/USB interface supports different bar code types to print receipts quickly, clearly and cost-effectively. It is a printer that uses heat to transfer images to paper, without the use of ink or toner.
User-Friendly: Easily load paper and simplify the paper changing process to reduce paper jams.
Flexible & Smart : Supports full and partial cuts, with paper end and near-end sensors for efficient paper management.
High Performance: Supports 1-D and 2-D barcode printing along with graphic printing.
Broad Compatibility: Compatible with EPSON ESC/POS commands
Specification
Print Method | Thermal line |
Resolution | 8 dots/mm, 576 dots/line |
Effective Printing Width | 72mm |
Print Font | ANK: Font A: 12*24 Font B: 9*17 Chinese:24*24 |
Print Speed | 180mm/s |
Self-defined Character | Yes |
Barcode | UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODABAR, CODE93, CODE128, QR Code, PDF417 |
Graphic | Support bitmap downloading |
Sensor | Paper end sensor, Paper near end sensor |
Overheating Protection | Yes |
Interface | RS-232+USB+RJ11 |
Power Supply | DC24/2A |
TPH | 100km |
Paper Type | Thermal paper |
Paper Width | 79.5± 0.5mm |
Paper Thickness | 0.06 to 0.08mm |
Paper Roll Diameter | Max: 80.0mm |
Paper Supply Method | Drop-in Easy Loading |
Paper Cutting Method | Full / Partial cut |
Operating Temp/Humidity | 0-50°C/10%-80% |
Storage Temp/Humidity | -20-60°C / 10%-90% |
Installation Port Size | Check below attachment |
Outline Dimension (LxWxH) | Check below attachment |
Command | ESC/POS |
Weight | 1 KG (without Paper) |
Colour | Black/ white |
Driver | Windows/Linux/OPOS |
SDK | WM/Wince/Symbian/Android/IOS |
Easy paper loading
The RG-EC80A loads paper easily, making it easy for even new users to get started.
At the same time, its anti-jamming paper design effectively reduces the risk of paper clogging, ensures the stability and reliability of the printing process, and is suitable for a variety of application scenarios.

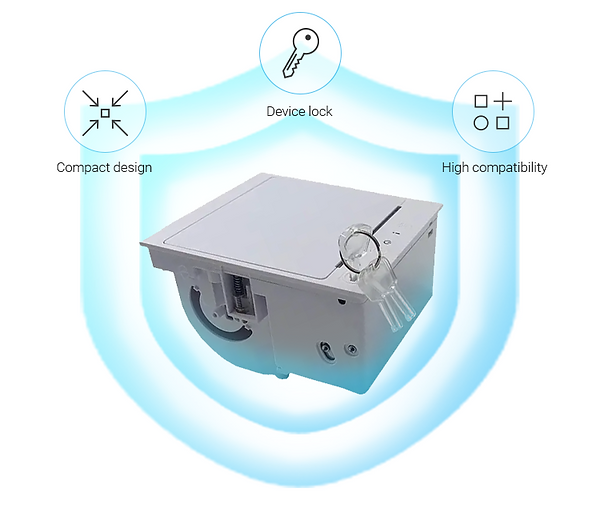

Optional Lock
The RG-EC80A offers an optional locking function that flexibly adapts to the needs of different scenarios and enhances device security.
